Omni Cargo

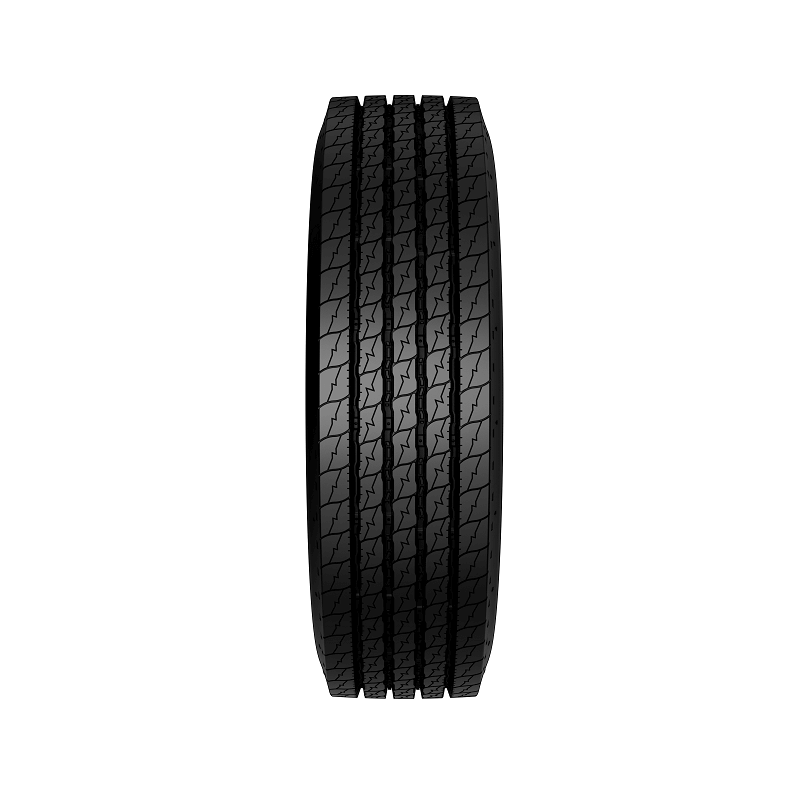

AP 200
All-Position
The AP 200 is a premium all-position design that covers a broad class of applications and road conditions.
Features:
- Wide footprint maximizes weight dispersion for even, uniform wear
- Generous siping to combat irregular wear and enhance overall mileage.
| Size | TT/TL | PLY | Load Index Single |
Load Index Dual |
Speed Rating |
Max Load Single (LBS) |
Max Load Dual (LBS) |
Tread Depth 32nds |
Overall Diameter |
Section Width |
Rim Width | Max PSI |
Revs/ Mile |
Weight (Lbs) |
Static Load Radius |
Item Code |
| 215/75R17.5 | TL | 16 | 135 | 133 | K | 4806 | 4542 | 16 | 30.2 | 8.35 | 6.00 | 123 | 668 | 66.14 | 357 | OMC9050 |
| 235/75R17.5 | TL | 16 | 143 | 141 | J | 6008 | 5677 | 17 | 31.61 | 9.25 | 6.75 | 127 | 638 | 73.85 | 374 | OMC9060 |
| *225/70R19.5 | TL | 14 | 128 | 126 | L | 3970 | 3750 | 17 | 32.09 | 8.82 | 6.75 | 110 | 629 | 67.46 | 382 | OMC9101 |
| *245/70R19.5 | TL | 16 | 135 | 133 | L | 4805 | 4540 | 17 | 3303 | 9.61 | 7.50 | 120 | 611 | 77.16 | 394 | OMC9105 |
*Phase 2 sizes available Q4 2021
