Omni Cargo
CS 300
Closed Shoulder Drive

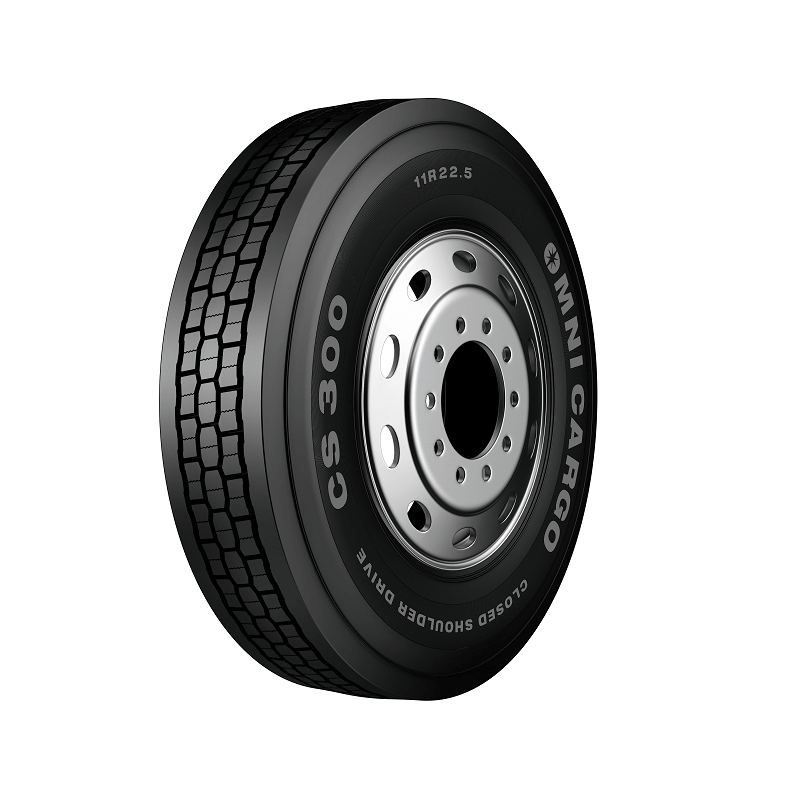

The CS 300 is a premium closed-shoulder drive tire for regional and long-haul applications.
Features:

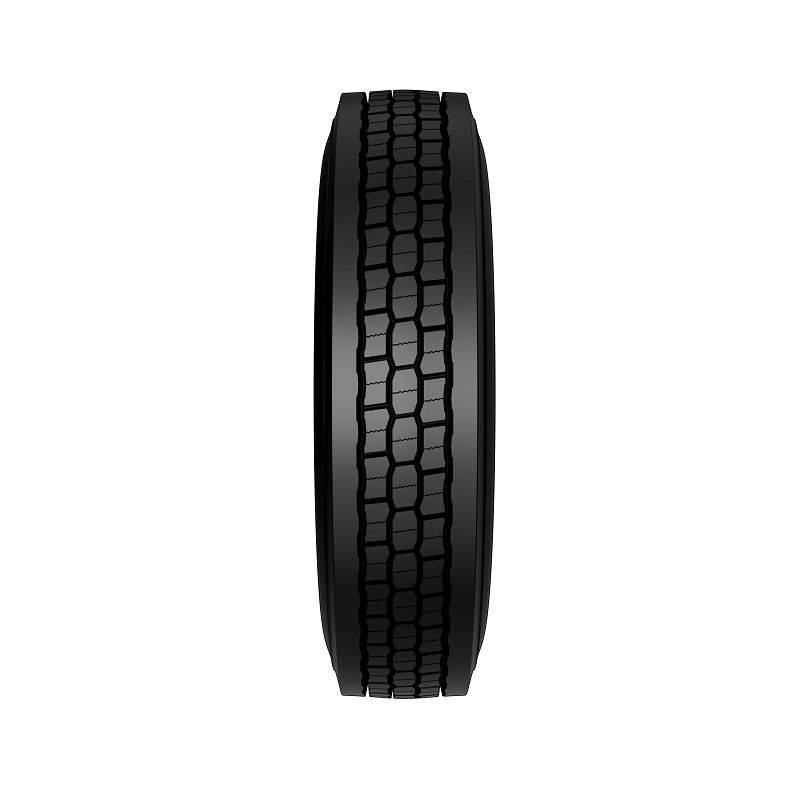

- Enhanced siping and tread block design offers exceptional water dispersion and exceptional traction in all weather conditions.
- The CS300 wide footprint offers an excellent contact patch and overall stability in all conditions
- Fuel efficient cap base compound to support reduced fuel consumption.
| Size | TT/TL | PLY | Load Index Single |
Load Index Dual |
Speed Rating |
Max Load Single (LBS) |
Max Load Dual (LBS) |
Tread Depth 32nds |
Overall Diameter |
Section Width |
Rim Width |
Max PSI |
Revs/ Mile |
Weight (Lbs) |
Static Load Radius |
Item Code |
| 11R22.5 | TL | 16 | 146 | 143 | L | 6614 | 6008 | 28 | 41.69 | 10.79 | 8.25 | 120 | 484 | 126.66 | 489 | OMC9021 |
| 295/75R22.5 | TL | 16 | 146 | 143 | L | 6614 | 6008 | 28 | 40.28 | 11.54 | 9.00 | 120 | 501 | 125.33 | 472 | OMC9070 |
| *11R24.5 | TL | 16 | 149 | 146 | L | 7160 | 6610 | 28 | 43.394 | 11.22 | 8.25 | 120 | 4659 | 132.28 | 516 | OMC9117 |
| *285/75R24.5 | TL | Specifications under development | OMC9113 |
*Phase 2 sizes available Q4 2021
